Test Strips and Capillary Tubes for CardioChek PA

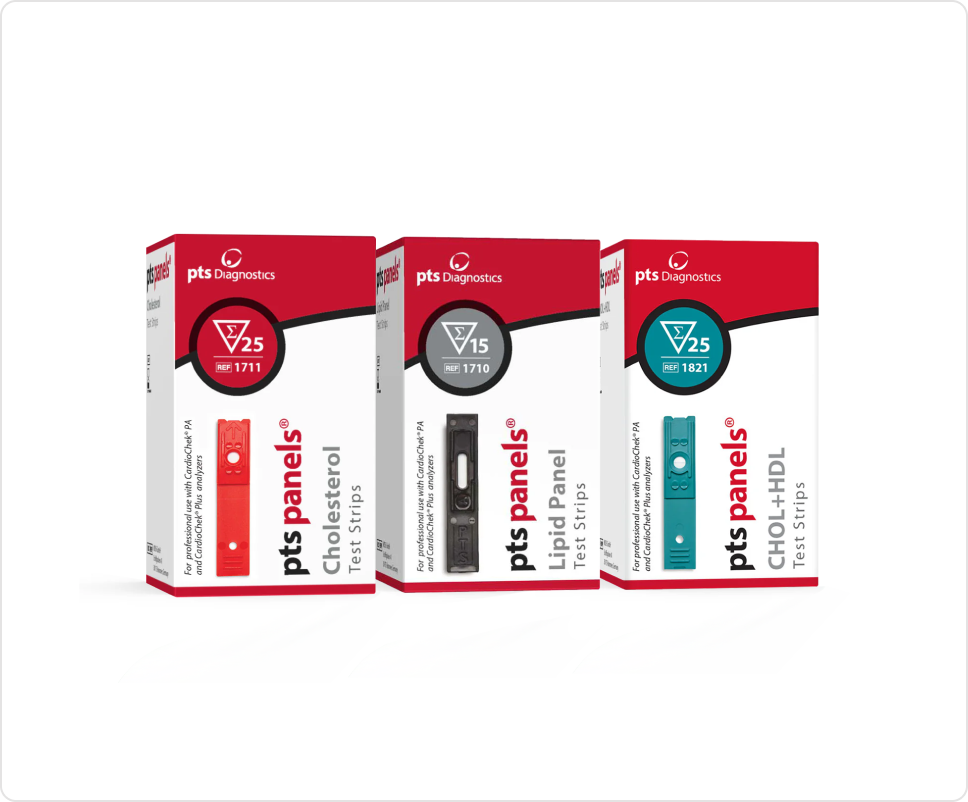

Clinicians have flexibility in testing with PTS Panels test strips for CardioChek PA analyzers.
PTS Panels test strips are composed of several layers of filters and dry chemistry membranes in a plastic carrier. Each membrane layer performs specific functions to process and facilitate chemical reactions.
A MEMo Chip is included with each vial of test strips and contains specific calibration and other information that enables the CardioChek Plus analyzer to “read” each test strip. The MEMo Chip is the key link between the test strip and the analyzer.
Where to Buy
Contact your medical distributor or contact us.
Note: Some PTS Diagnostics distributors assign their own reference number to our products. Please check with your distributor representative before ordering.

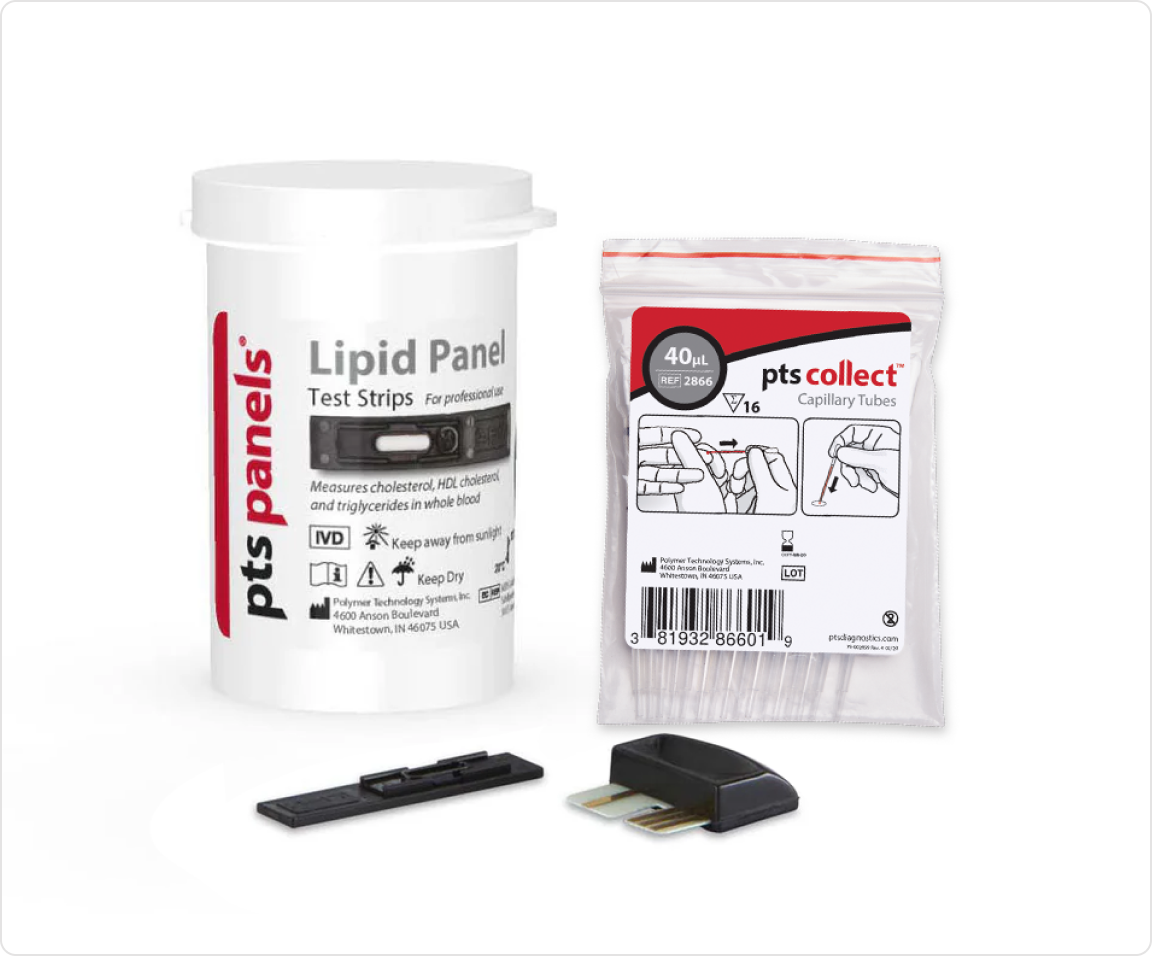

Lipid Panel
REF 1710
Measures Total Cholesterol, HDL, and Triglycerides
Calculates LDL and TC/HDL ratio
15 test strips per vial
Memo chip is included
Measuring Range
Total Cholesterol
100-400 mg/dL
(2.59-10.36 mmol/L)
HDL Cholesterol
20-120 mg/dL
(0.52-3.1 mmol/L)
Triglycerides
50-500 mg/dL
(0.56-5.65 mmol/L)
Sample Size
40 µL whole blood
(fingerstick or venous)
REF 2686
PTS Collect Capillary Tubes, 40 µL
Sold separately
Safety Data Sheet
CHOL+HDL+GLU
REF 2412
Measures Total Cholesterol, HDL, and Glucose
Calculates TC/HDL ratio
15 test strips per vial
Memo chip is included
Measuring Range
Total Cholesterol
100-400 mg/dL
(2.59-10.36 mmol/L)
HDL Cholesterol
15-100 mg/dL
(0.39-2.59 mmol/L)
Glucose
20-600 mg/dL
(1.11-33.3 mmol/L)
Sample Size
40 µL whole blood
(fingerstick or venous)
REF 2686
PTS Collect Capillary Tubes, 40 µL
Sold separately
Safety Data Sheet
CHOL+GLU Test Strips
REF 1765
Measures total cholesterol and glucose
25 test strips per vial
Memo chip is included
Measuring Range
Total Cholesterol
100-400 mg/dL
(2.59 – 10.36 mmol/L)
Glucose
20 – 600 mg/dL
(1.11 – 33.3 mmol/L)
Sample Size
30 µL whole blood
(fingerstick or venous)
REF 2685
PTS Collect Capillary Tubes, 30 µL.
Sold separately
Safety Data Sheet
CHOL+HDL Test Strips
REF 1821
Measures total cholesterol
Calculates TC/HDL ratio
25 test strips per vial
Memo chip is included
Measuring Range
Total Cholesterol
100-400 mg/dL
(2.59 – 10.36 mmol/L)
HDL Cholesterol
15 – 100 mg/dL
(0.39 – 2.59 mmol/L)
Sample Size
30 µL whole blood
(fingerstick or venous)
REF 2685
PTS Collect CapillaryTubes, 30 µL
Sold separately
Package Inserts
Safety Data Sheet
Cholesterol Test Strips
REF 1711
Measures total cholesterol
25 test strips per vial
Memo chip is included
Measuring Range
100-400 mg/dL
(2.59-10.36 mmol/L)
Sample Size
15 µL whole blood
(fingerstick or venous)
REF 2863
PTS Collect Capillary Tubes, 15 µL
Capillary tubes sold separately
Package Inserts
Safety Data Sheet
Triglycerides Test Strips
REF 1716
Measures Triglycerides
25 test strips per vial
Memo chip is included
Measuring Range
100-400 mg/dL
(2.59-10.36 mmol/L)
Sample Size
15 µL whole blood
(fingerstick or venous)
REF 2863
PTS Collect Capillary Tubes, 15 µL
Capillary tubes sold separately
Package Inserts
Safety Data Sheet
Glucose Test Strips
REF 1713
Measures glucose
25 reflectance test strips per vial
Memo chip is included
Measuring Range
20-600 mg/dL
(1.11-33.3 mmol/L)
Sample Size
15 µL whole blood
(fingerstick or venous)
REF 2863
PTS Collect Capillary Tubes, 15 µL
Capillary tubes sold separately
Package Inserts
Safety Data Sheet
