Test Strips for CardioChek Plus

PTS Panels® test strips allow clinicians to have flexibility in testing with CardioChek Plus analyzers. PTS Panels test strips are composed of several layers of filters and dry chemistry membranes in a plastic carrier. Each membrane layer performs specific functions to process and facilitate chemical reactions.

  • Test strips can be stored at room temperature.

  • CRMLN-certified and FDA-cleared.

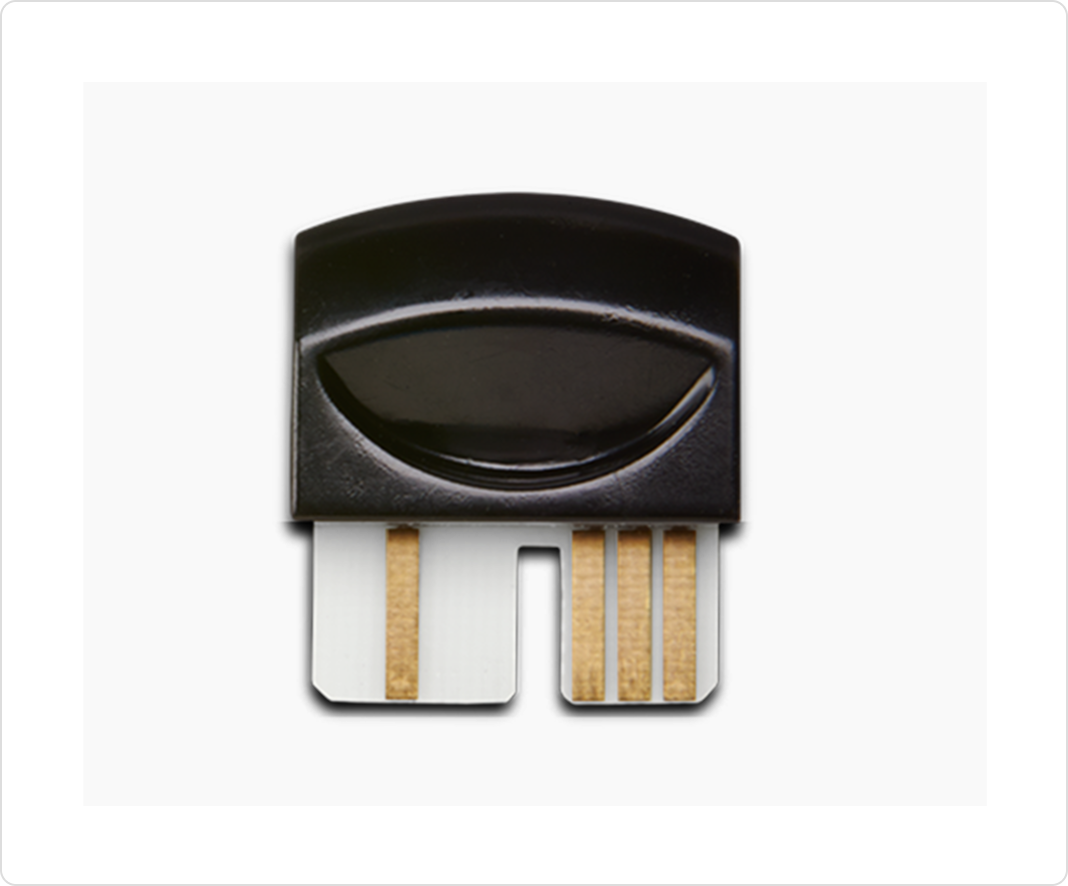

A MEMo Chip is included with each vial of test strips and contains specific calibration and other information that enables the CardioChek Plus analyzer to “read” each test strip. The MEMo Chip is the key link between the test strip and the analyzer.

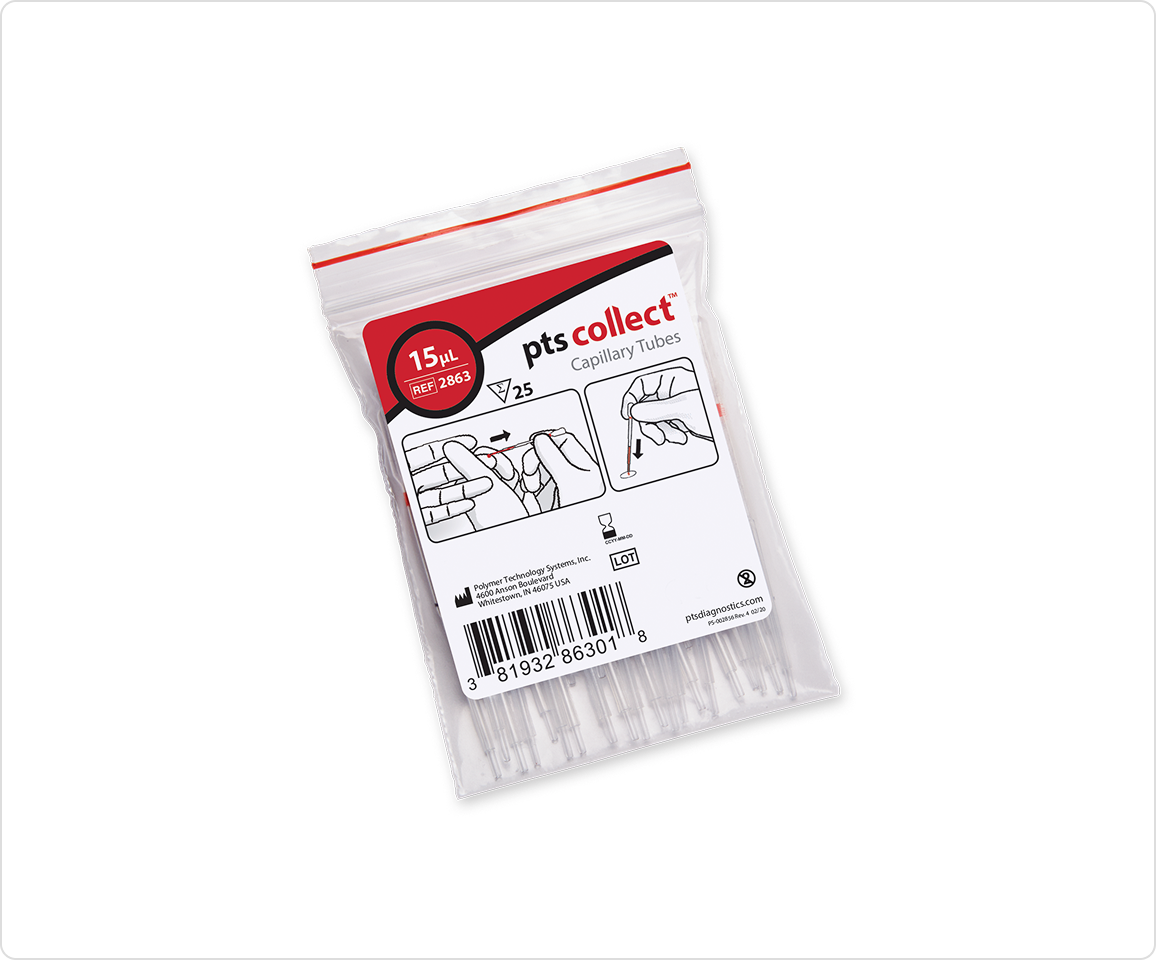

Capillary Tubes for CardioChek Plus

PTS Collect™ capillary tubes provide speed, efficiency and savings — especially for applications where exact sample volumes are required.

  • Ease-of-use with no assembly

  • One-hand blood collection and dosing

  • Glass tube for easy blood collection

  • Bulb-squeeze dispensing technology that ensures consistent performance

  • Only one item to inventory (no plunger)

PTS Collect Capillary Tubes User Guide

Where to Buy

Contact your medical distributor or contact us.

Note: Some PTS Diagnostics distributors assign their own reference number to our products. Please check with your distributor representative before ordering.

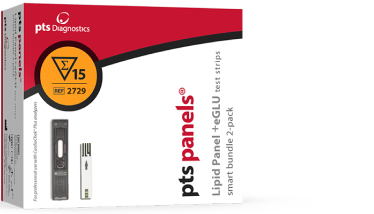

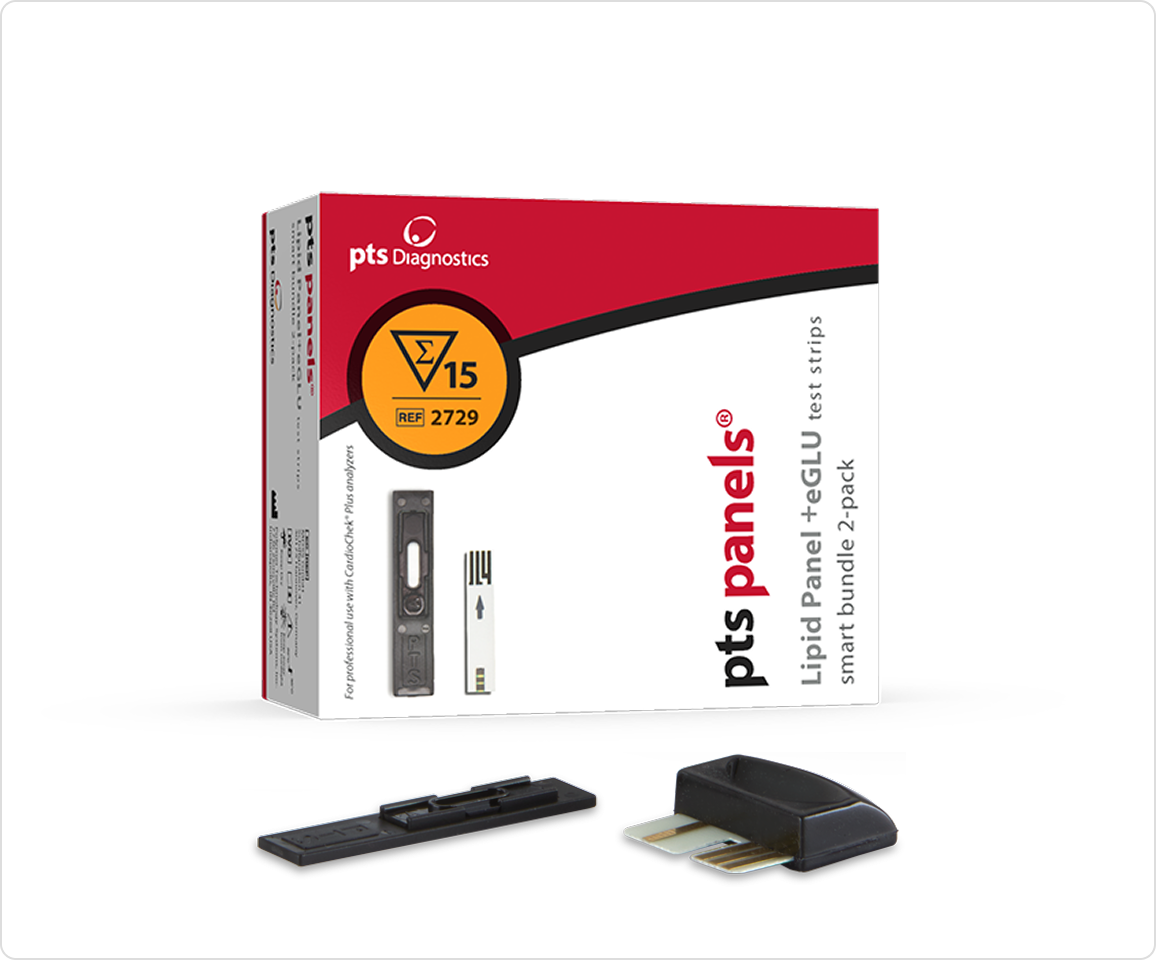

Lipid Panel
+eGLU Smart Bundle

REF 2729

The Lipid+eGLU Smart Bundle pack combines one 15-count lipid test strips vial and one 15-count electrochemical glucose (eGLU) test strips vial into a single package

Measures lipids and glucose simultaneously.

Accurate results in as little as 90 seconds.

For use only with the CardioChek Plus analyzer.

Measuring Range

Total Cholesterol
100-400 mg/dL
(2.59-10.36 mmol/L)

HDL Cholesterol
20-120 mg/dL
(0.52-3.1 mmol/L)

Triglycerides
50-500 mg/dL
(0.56-5.65 mmol/L)

Sample Size

40 µL whole blood
(fingerstick or venous)



REF 2686
PTS Collect Capillary Tubes, 40 µL
Sold separately

eGLU
1.1 µL whole blood (fingerstick)

Apply sample directly
to the test strip



Package Inserts

Lipid Panel
English

 Lipid Panel
(Extended HDL Cholesterol Range)
English
Dutch
French
German
Portuguese
Spanish

eGLU
English
Dutch
French
German
Portuguese
Spanish

Safety Data Sheet

Lipid Panel SDS
eGLU SDS

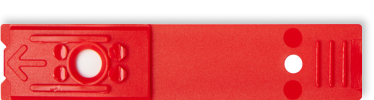

Lipid Panel

REF 1710
REF 3108 -EU

Measures Total Cholesterol, HDL, and Triglycerides

Calculates LDL and TC/HDL ratio

15 test strips per vial

Memo chip is included

Measuring Range

Total Cholesterol
100-400 mg/dL
(2.59-10.36 mmol/L)

HDL Cholesterol
20-120 mg/dL
(0.52-3.1 mmol/L)

Triglycerides
50-500 mg/dL
(0.56-5.65 mmol/L)

Sample Size

40 µL whole blood
(fingerstick or venous)



REF 2686
PTS Collect Capillary Tubes, 40 µL
Sold separately

Package Inserts

English
Dutch
French
German
Portuguese
Spanish

PACKAGE INSERTS (European Union)

English
Italian

Safety Data Sheet

Lipid Panel SDS

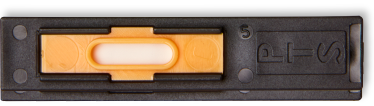

CHOL+HDL+GLU

REF 2412

Measures Total Cholesterol, HDL, and Glucose

Calculates TC/HDL ratio

15 test strips per vial

Memo chip is included

Measuring Range

Total Cholesterol
100-400 mg/dL
(2.59-10.36 mmol/L)

HDL Cholesterol
15-100 mg/dL
(0.39-2.59 mmol/L)

Glucose
20-600 mg/dL
(1.11-33.3 mmol/L)

Sample Size

40 µL whole blood
(fingerstick or venous)



REF 2686
PTS Collect Capillary Tubes, 40 µL
Sold separately

Package Inserts

English
Dutch
French
German
Portuguese
Spanish

Safety Data Sheet

CHOL+HDL+GLU SDS

CHOL+GLU Test Strips

REF 1765

Measures total cholesterol and glucose

25 test strips per vial

Memo chip is included

Measuring Range

Total Cholesterol
100-400 mg/dL
(2.59 – 10.36 mmol/L)

Glucose
20 – 600 mg/dL
(1.11 – 33.3 mmol/L)

Sample Size

30 µL whole blood
(fingerstick or venous)



REF 2685
PTS Collect Capillary Tubes, 30 µL.
Sold separately

Package Inserts

English
Spanish

Safety Data Sheet

CHOL+GLU SDS

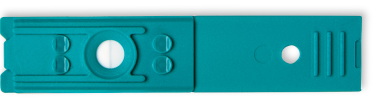

CHOL+HDL Test Strips

REF 1821

Measures total cholesterol

Calculates TC/HDL ratio

25 test strips per vial

Memo chip is included

Measuring Range

Total Cholesterol
100-400 mg/dL
(2.59 – 10.36 mmol/L)

HDL Cholesterol
15 – 100 mg/dL
(0.39 – 2.59 mmol/L)

Sample Size

30 µL whole blood
(fingerstick or venous)



REF 2685
PTS Collect CapillaryTubes, 30 µL
Sold separately

Package Inserts

English

Safety Data Sheet

CHOL+HDL SDS

Cholesterol Test Strips

REF 1711
REF 3113 – EU

Measures total cholesterol

25 test strips per vial

Memo chip is included

Measuring Range

100-400 mg/dL
(2.59-10.36 mmol/L)

Sample Size

15 µL whole blood
(fingerstick or venous)



REF 2863
PTS Collect Capillary Tubes, 15 µL
Capillary tubes sold separately

Package Inserts

English

European Union:

English -EU
Italian – EU

Safety Data Sheet

Cholesterol SDS

Triglycerides Test Strips

REF 1716

Measures Triglycerides

25 test strips per vial

Memo chip is included

Measuring Range

100-400 mg/dL
(2.59-10.36 mmol/L)

Sample Size

15 µL whole blood
(fingerstick or venous)



REF 2863
PTS Collect Capillary Tubes, 15 µL
Capillary tubes sold separately

Package Inserts

English

Safety Data Sheet

Triglycerides SDS

Glucose Test Strips

REF 1713

Measures glucose

25 reflectance test strips per vial

Memo chip is included

Measuring Range

20-600 mg/dL
(1.11-33.3 mmol/L)

Sample Size

15 µL whole blood
(fingerstick or venous)



REF 2863
PTS Collect Capillary Tubes, 15 µL
Capillary tubes sold separately

Package Inserts

English

Safety Data Sheet

Glucose SDS

eGLU Test Strips

REF 1713

Measures glucose

50 electrochemical test strips per vial

For use with CardioChek Plus analyzers only.

Memo chip is included

Measuring Range

40-600 mg/dL
(2.22 – 33.3 mmol/L)

Sample Size

1.1 µL whole blood (fingerstick)

Apply sample directly
to the test strip





Package Inserts

English
Dutch
French
German
Portuguese
Spanish

Safety Data Sheet

eGLU SDS
